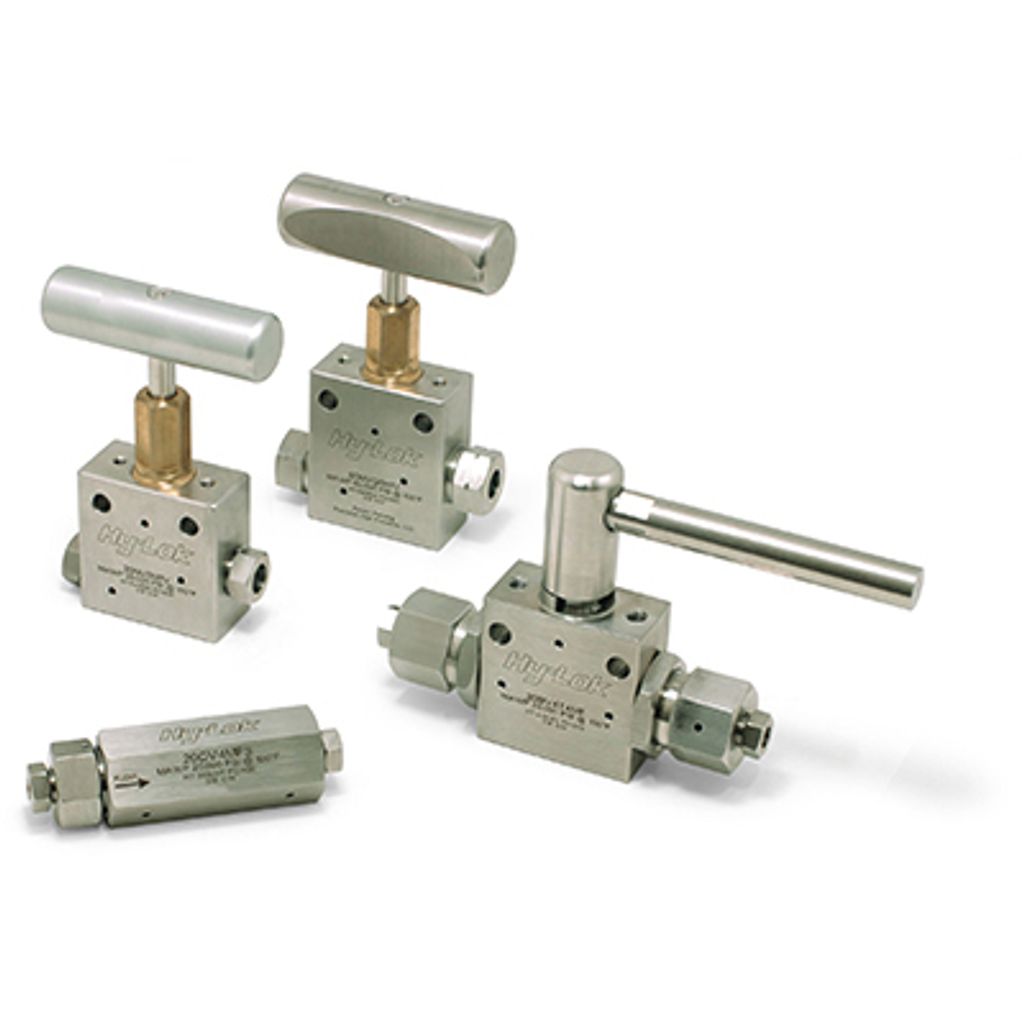

Hy-Lok HP Series Valves

Hy-Lok HP Series Valves

Applications

Waterjet, Chemical Injection

Features

- Needle Valve
  Non-rotating Stem and bar stock body design
  Options for Vee or Regulating stem tips
- Ball Valve
  One-piece, trunnion mounted style,
  ideal for severe duty application
  Two-way, three-way valve configurations

Specifications

- Maximum Operating Pressure :
  60000 psig(4137 barg) @ 100℉(38℃)
- Operating Temperature Range :
  -100℉(-73℃) to 600℉(316℃)

10-1._High_Pressure_Valves_(2017).pdf
